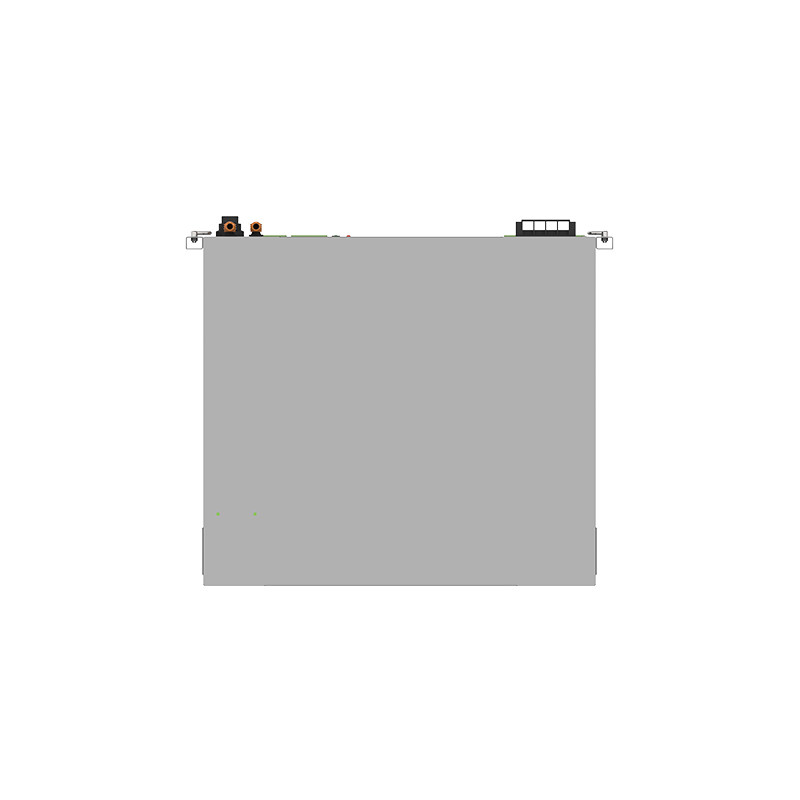

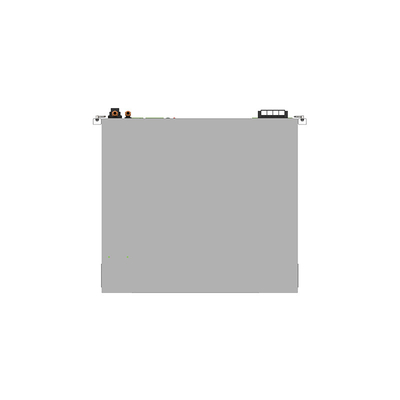

100kW AC Rated Power Energy Storage Converter System with THDi 3% Ipn

Product Description:

The Modular energy storage converter is a cutting-edge product designed to meet the growing demands of the energy storage market. With an AC Rated Power of 100kW, this converter is a powerful solution for various energy storage applications.

One of the key highlights of this product is its Hierarchical control architecture with a control period of less than 500μs. This advanced control system ensures high precision and efficiency in managing energy flow within the system, making it ideal for BESS (Battery Energy Storage System) applications.

Another notable feature of the Modular energy storage converter is its use of Standardized Power Modules. These modules come in 25kW, 50kW, and 100kW configurations, providing flexibility and scalability to meet different power requirements. Whether you need a small-scale energy storage solution or a large-scale system, these standardized power modules can be easily integrated to suit your needs.

When it comes to the DC component, this converter boasts an impressive performance with less than 0.5% (Ipn). This ensures minimal energy losses during the conversion process, maximizing the efficiency of the energy storage battery system.

The Modular energy storage converter also stands out for its use of Next-Gen Power Devices. By adopting SiC MOSFET technology with 1200V/300A modules, this converter offers improved performance and efficiency compared to traditional power devices. With a 50% reduction in switching losses, this next-generation technology enhances the overall reliability and performance of the energy storage system.

Features:

• Product Name: Modular energy storage converter
• Performance Metrics:
  • Response Time: <1ms (10-90% step)
  • THD: <2% at full load
  • Efficiency Curve: >95% from 20-100% load
• Rated Grid Voltage: 400V
• Reliability Enhancements:
  • Fault tolerance: Single module failure causes <2% output reduction
• Rated Grid Frequency: 50Hz/60Hz ±5Hz
• Next-Gen Power Devices:
  • SiC MOSFET adoption: 1200V/300A modules available, 50% reduction in switching losses

Technical Parameters:

Applications:

HKIVI's Modular energy storage converter, model number PCS100-3S, is versatile and suitable for various application occasions and scenarios due to its innovative design and advanced features.

One key application scenario for this product is in the integration of renewable energy sources such as solar and wind power. The energy storage converter can efficiently manage the fluctuating power supply from these sources, store excess energy in energy storage batteries, and release it when needed to maintain a stable power output.

Another important application is in microgrid systems, where the converter plays a crucial role in balancing power generation and consumption. It can store excess energy during low demand periods and supply power during peak demand, ensuring a reliable and uninterrupted power supply.

Furthermore, the modular design of the energy storage converter allows for easy scalability. By connecting multiple units in parallel, the power scaling capability ranges from 100kW to over 20MW, making it suitable for a wide range of power supply requirements.

The energy storage converter is designed for flexibility and can adapt to different grid frequencies, supporting 50Hz/60Hz ±5Hz. This feature makes it ideal for international markets with varying grid standards.

In addition, the wide DC voltage range of 650~950Vdc and compact system dimensions of 900*320*800mm make the product suitable for various installations, whether in utility-scale power plants or distributed energy systems.

With a weight of 140kg and customizable packaging options, the energy storage converter is easy to transport and install, offering convenience to users.

Overall, HKIVI's Modular energy storage converter is a reliable and cost-effective solution for power supply management in diverse applications, from renewable energy integration to microgrid systems.

Support and Services:

The Product Technical Support and Services for the Modular energy storage converter product are designed to provide comprehensive assistance to users. Our team of experts is available to help with any technical issues, troubleshooting, and maintenance needs that you may have.

Our services include:

• 24/7 technical support hotline
• Remote diagnostics and troubleshooting
• On-site maintenance and repair services
• Training programs for customers and technicians
• Product documentation and updates

We are committed to ensuring that your Modular energy storage converter product operates efficiently and reliably. Contact us for any technical support or service inquiries.

Packing and Shipping:

Product Packaging for Modular Energy Storage Converter:

The modular energy storage converter is carefully packaged to ensure its safety during transportation. Each unit is securely placed in a sturdy cardboard box with ample cushioning to prevent any damage. The product is also sealed to protect it from dust and moisture.

Shipping Information:

Once your order is processed, the modular energy storage converter will be shipped via a reliable courier service. You will receive a tracking number to monitor the delivery status of your package. Please ensure someone is available to receive and sign for the delivery to avoid any delays.

FAQ:

Q: What is the brand name of the energy storage converter product?

A: The brand name is HKIVI.

Q: What is the model number of the energy storage converter?

A: The model number is PCS100-3S.

Q: What is the place of origin of the energy storage converter?

A: The product is manufactured in China.

Q: What are the available payment terms for purchasing this product?

A: Payment terms include L/C, D/A, D/P, T/T, Western Union, and MoneyGram.

Q: What is the supply ability of the energy storage converter product?

A: The supply ability is 1 set per month.
