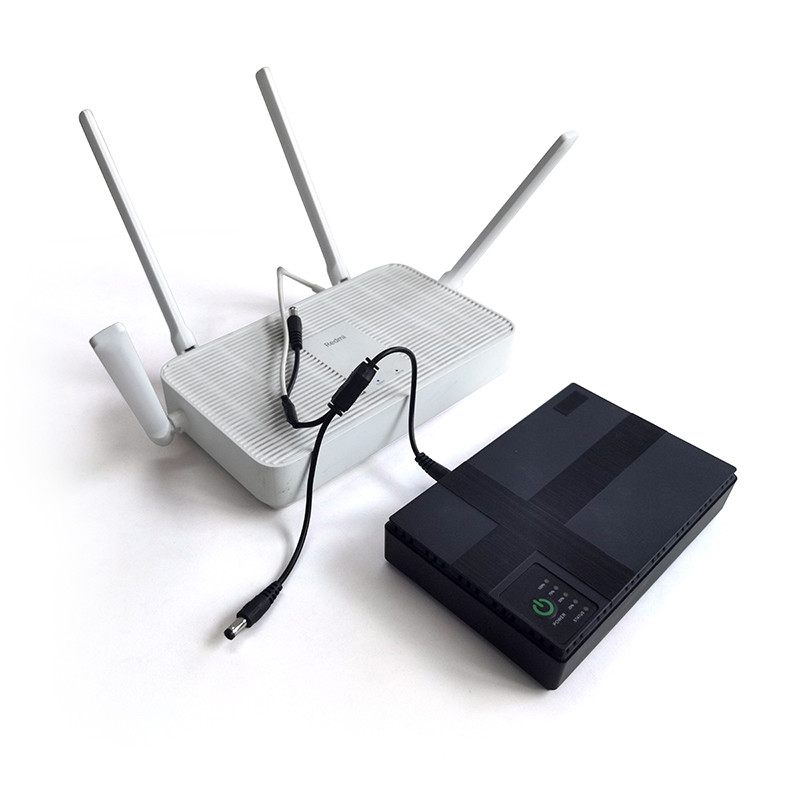

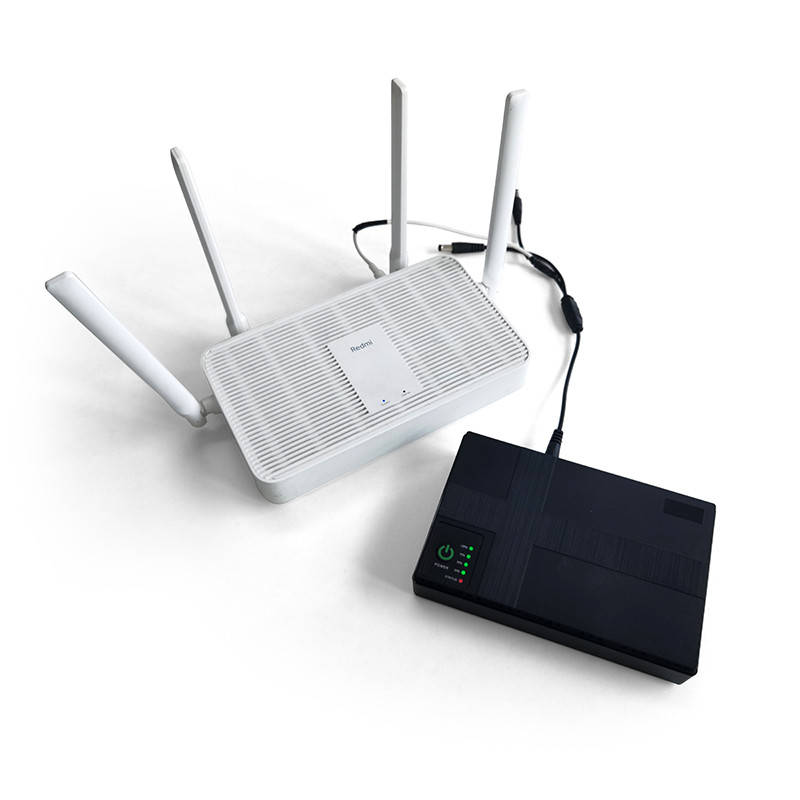

Battery Backup 10400mah Mini Ups 12v For Wifi Router Power Supply 36W
| Place of Origin | China |
|---|---|
| Brand Name | HKIVI |
| Model Number | DC1018/1036 |
| Minimum Order Quantity | Minimum order quantity: 20 sets |
| Price | Negotiable |
| Packaging Details | Single package size: 22X18X5cm |
| Delivery Time | 7-14 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal |
| Supply Ability | 2000 sets/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Smart Mini UPS | Type | Battery Backup 10400mah Mini Ups 12v For Wifi Router Power Supply 36W |
|---|---|---|---|
| Output Power | 18w/36w | Battery Capacity | 8800mah-10400mah |
| Output | 5VDC/9VDC/12VDC, POE15V/24V | Output Current | 1~8A |
| Input Voltage | 220v 110v | Appplication | Modem,ip CCTV Camera,Router,diverter,poe,Networking |
| Size | 14.9cm*5.1cm*4.8cm | Weight | 0.35KG |
| Highlight | 12v battery backup,36w battery backup,36w mini ups 12v |
||
Product Description
Battery Backup 10400mah Mini Ups 12v For Wifi Router Power Supply 36W
What is a Smart Mini UPS?
Intelligent monitoring and management:
Built-in Wi-Fi or Ethernet connection, you can remotely monitor the UPS status through the mobile app or web interface.
Supports active push of alarm information such as battery status, load conditions, power switching, etc.
Can set intelligent power management functions such as automatic start and stop, timed charging, etc.
Link with equipment:
Can communicate with key equipment (such as routers, servers, etc.) through protocol docking.
Automatically execute the device safety shutdown program when the power is off to protect data and system integrity.
Automatically wake up the device when the power is restored to achieve seamless switching.
Battery health management:
Continuously monitor the battery status, predict the battery life and provide replacement suggestions.
Intelligent charge and discharge control to extend the battery life.
Support external battery expansion and flexible expansion of backup time.
Environmental perception:
Integrated environmental sensors such as temperature, humidity, vibration, etc. to monitor the use environment around the UPS.
Can automatically adjust the charge and discharge strategy according to environmental conditions to improve system stability.
Multi-device collaboration:
Supports grouping and management of multiple Smart Mini UPS to form an integrated power backup solution.
Achieve high availability functions such as master-slave switching and load balancing.
This Smart Mini UPS is very suitable for application fields such as network equipment, servers, industrial control, building automation, etc., and can provide more intelligent, stable and reliable power support.
| Model | DC1018C | DC1018CP | DC1018 | DC1018P | DC1036 | DC1036P |
|---|---|---|---|---|---|---|
|
Input |
85-265Vac/50-60Hz | |||||
|
Output |
USB 5V/2A | USB 5V/2A | USB 5V/2A | USB 5V/2A | USB 5V/2A | USB 5V/2A |
|
|
DC 9V/1A | DC 9V/1A | DC 9V/1A | DC 9V/2A | DC 5V/2A | DC 5V/2A |
|
|
DC 12V/1A | DC 12V/1A | DC 12V/1A | DC 12V/1A | DC 9V/1A | DC 9V/2A |
|
|
POE 15V/0.6A |
POE 15V/0.6A |
DC 12V/2A | DC 12V/2A | ||
|
|
POE 24V/0.6A |
POE 24V/0.6A |
POE 15V/1A |
|||
|
|
POE 24V/1A |
|||||
|
Output Power (Max) |
18W | 18W | 18W | 18W | 36W | 36W |
|
Quantity/Capacity of battery |
2200mAh*4(lithium 2200battery)OR 2000mAh*4(LiFePO4)(1800mah--2600mah selected) | |||||
|
Operate temperature |
-10℃-40℃ | |||||
| Humidity | 10%-90%RH | |||||
Smart Mini UPS effectively extends the battery life in the following ways:
Dynamic charging management:
Smart Mini UPS adjusts the charging current and voltage in real time according to the battery status.
Avoid overcharging or fast charging to reduce the chemical degradation of the battery.
When the battery power is high, the floating charge mode is used to maintain the power and further extend the battery life.
Temperature compensation:
Monitor the battery temperature and automatically adjust the charging parameters according to the temperature.
Reduce the charging current in high temperature environment to prevent the battery from overheating.
Properly increase the charging current in low temperature environment to ensure that the battery can be fully charged.
Periodic calibration:
Perform deep discharge and charge calibration on the battery regularly to correct the battery capacity.
Eliminate the battery memory effect to avoid the gradual decrease of battery capacity.
Periodic calibration can be achieved in manual or automatic mode.
Load adaptation:
Intelligently detect the load power and dynamically adjust the output current according to the load.
Avoid the battery from being in an over-discharge state for a long time and reduce the number of deep discharges of the battery.
Improve the efficiency and reliability of the battery.
Battery life prediction:
Predict the remaining service life of the battery through data analysis such as battery capacity and internal resistance.
Early warning of battery replacement is required to avoid power outages caused by sudden battery damage.
Provide users with a reasonable battery replacement plan.
In summary, the Smart Mini UPS effectively extends the battery life and reduces the user's maintenance costs through a refined battery management strategy. These functions are one of the important advantages of the intelligent Mini UPS over traditional UPS.
Advantages of Smart Mini UPS in Extending Battery Life:
Application Scenarios for Medical Equipment:
Some key medical equipment in hospitals, such as ECG monitors and medical imaging equipment, require UPS to provide reliable backup power.
These devices usually work continuously for 24 hours in hospital environments, and the batteries are easily affected by high temperature, frequent charging and discharging, and other factors and age.
After using the Smart Mini UPS, the charging and discharging strategy can be adjusted according to the actual load of the equipment to avoid over-discharge. At the same time, the temperature compensation function can reduce the impact of high temperature on the battery and greatly extend the battery life.
Application Scenarios for Communication Base Stations:
Communication base stations require UPS to provide continuous power supply during power outages to ensure the normal operation of the communication network.
Since base stations are usually located in harsh environments, such as high temperature and humidity, batteries are prone to aging.
Smart Mini UPS can monitor environmental conditions in real time, automatically adjust charging and discharging parameters, and improve the adaptability and service life of batteries in harsh environments. At the same time, it can also timely warn of battery aging and guide reasonable replacement plans.
Application Scenarios for Data Centers:
Data centers have high requirements for power supply reliability and require UPS to provide sufficient backup time during power outages.
Since server equipment is densely populated in data centers and the ambient temperature is high, the battery life is greatly affected.
Smart Mini UPS can automatically adjust the battery charging current according to the ambient temperature to reduce the damage to the battery caused by high temperature. At the same time, through battery health monitoring, it can warn in advance of batteries that need to be replaced to avoid power outages caused by sudden battery damage.
