10400mah 8800mah Backup Power Mini Dc Ups For Router And Modem 18w 36w
| Place of Origin | China |
|---|---|
| Brand Name | HKIVI |
| Model Number | DC1018P/1036P |
| Minimum Order Quantity | Minimum order quantity: 20 sets |
| Price | Negotiable |
| Packaging Details | Single package size: 22X18X5cm |
| Delivery Time | 7-14 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal |
| Supply Ability | 2000 sets/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Mini UPS | Type | 10400mah 8800mah Backup Power Mini Dc Ups For Router And Modem 18w 36w |
|---|---|---|---|
| Output Power | 18W/36w | Battery Capacity | 8800mah/10400mah |
| Output | 5VDC/9VDC/12VDC, POE15V/24V | Output Current | 1~8A |
| Input Voltage | 220v 110v | Appplication | Modem,ip CCTV Camera,Router,diverter,poe,Networking |
| Dimensions | 160*105*33mm | Weight | 0.35KG |
| Highlight | 10400mah mini dc ups,10400mah dc ups for router,8800mah mini dc ups |
||
Product Description
10400mah 8800mah Backup Power Mini Dc Ups For Router And Modem 18w 36w
Main usage scenarios and usage of Mini UPS:
Home/office equipment protection:
Applicable to low-power devices such as desktop computers, monitors, routers, and household appliances
Provide short-term power failure protection to ensure safe and orderly shutdown of equipment
Usually the capacity is between 500-1500VA
Communication/network equipment power supply:
Applicable to communication network equipment such as switches, wireless APs, and small servers
Ensure that network equipment maintains normal operation during power failures
The capacity is usually between 1000-3000VA
Medical/industrial control equipment power supply:
Applicable to some key medical equipment and industrial automation equipment
Provide short-term or continuous backup power support
The capacity depends on the power consumption requirements of the equipment, usually above 1000VA
Monitoring/security equipment power supply:
Applicable to security equipment such as surveillance cameras and alarm hosts
Ensure normal operation of equipment during power failures to prevent safety accidents
The capacity is usually between 500-1000VA
| Model |
DC1018C |
DC1018CP |
DC1018 |
DC1018P |
DC1036 |
DC1036P |
|---|---|---|---|---|---|---|
|
Input |
85-265Vac/50-60Hz |
|||||
|
Output |
USB 5V/2A |
USB 5V/2A |
USB 5V/2A |
USB 5V/2A |
USB 5V/2A |
USB 5V/2A |
|
|
DC 9V/1A |
DC 9V/1A |
DC 9V/1A |
DC 9V/2A |
DC 5V/2A |
DC 5V/2A |
|
|
DC 12V/1A |
DC 12V/1A |
DC 12V/1A |
DC 12V/1A |
DC 9V/1A |
DC 9V/2A |
|
|
|
POE 15V/0.6A |
|
POE 15V/0.6A |
DC 12V/2A |
DC 12V/2A |
|
|
|
POE 24V/0.6A |
|
POE 24V/0.6A |
|
POE 15V/1A |
|
|
|
|
|
|
|
POE 24V/1A |
|
Output Power (Max) |
18W |
18W |
18W |
18W |
36W |
36W |
|
Quantity/Capacity of battery |
2200mAh*4(lithium 2200battery)OR 2000mAh*4(LiFePO4)(1800mah--2600mah selected) |
|||||
|
Operate temperature |
-10℃-40℃ |
|||||
| Humidity |
10%-90%RH |
|||||
lts eight advantages
Use it whilecharging No need to wait / Easy to carry Small weight no burden / Large storagecapacity 8800-10400mAh Storage capacity / Multiplexed output Strong device compatibility / lmported chip Short circuit protection / Network monitoring Network monitoring assistant / Stable power supply Supports dual devices / Lithium battery Long lasting, safe and durable
With it
say NO to power cuts

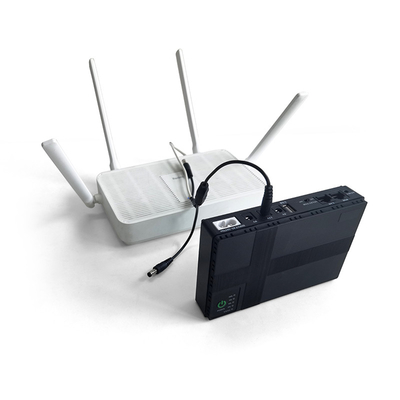

Use Mini UPS power to power WIFI devices
Usage:
1. Connect Mini UPS to AC power and the equipment to be powered
2. Connect Mini UPS to the AC power supply and the equipment to be powered
3. Set the standby time after power failure, automatic shutdown and other functions
4. Regularly check the battery status of Mini UPS and replace aging batteries
5. Can be integrated with the upper management system to achieve centralized monitoring and control
In general, Mini UPS is widely used in home, office, communication, industrial control and other fields to provide reliable backup power support for various electronic devices and protect them from power failures. Intelligent Mini UPS can also further optimize battery life and power supply efficiency.
A small or medium-sized enterprise has a core router that connects the internal LAN and the Internet. This router is a key device for the entire network system. Previously, the router was paralyzed due to power outages, causing the company's internal network to be paralyzed for several hours, which had a serious impact on business operations.
In order to avoid encountering such problems again, the company decided to deploy a Mini UPS next to the router. This Mini UPS has an output power of 300W and can provide 15-20 minutes of emergency backup power support for the router.
When the main power fails, the Mini UPS will immediately start and take over the power supply of the router. This ensures that the router can continue to work normally and avoid network interruptions. At the same time, the Mini UPS also integrates intelligent battery management functions, which can monitor the battery status in real time and issue alarm prompts in time.
With the reliable power protection of the Mini UPS, the company successfully avoided many network paralysis accidents caused by power outages. Employees can continue to use network resources normally during power outages, and production efficiency is not greatly affected.
In addition, the Mini UPS is small in size and takes up little space, making it very suitable for deployment next to the router. Maintenance personnel can also easily check and replace batteries. Overall, the Mini UPS provides powerful power backup support for the company's key network equipment, greatly improving the reliability of the network system.
